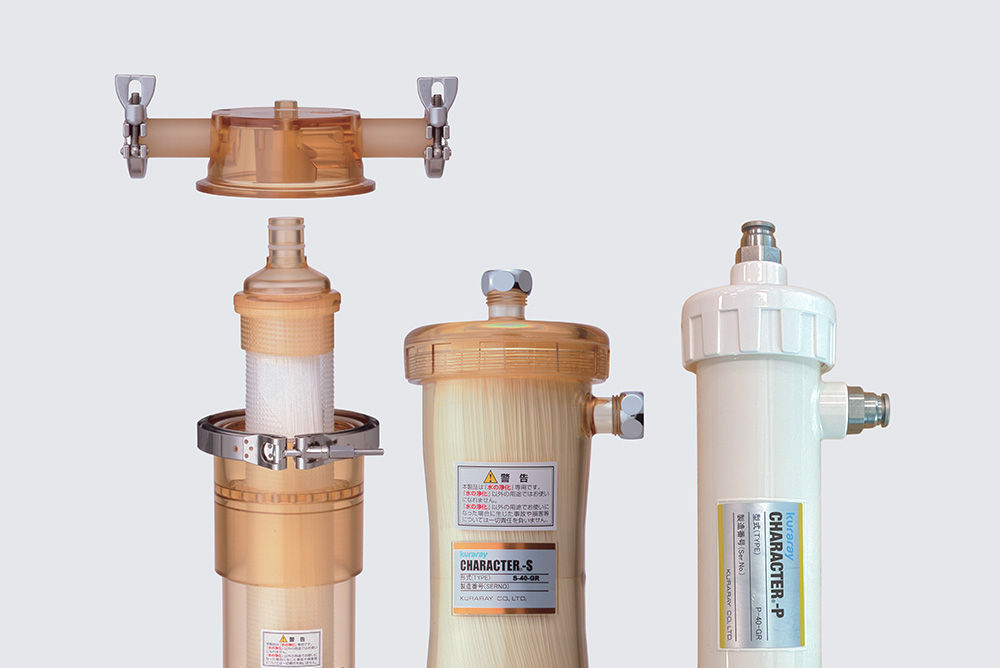

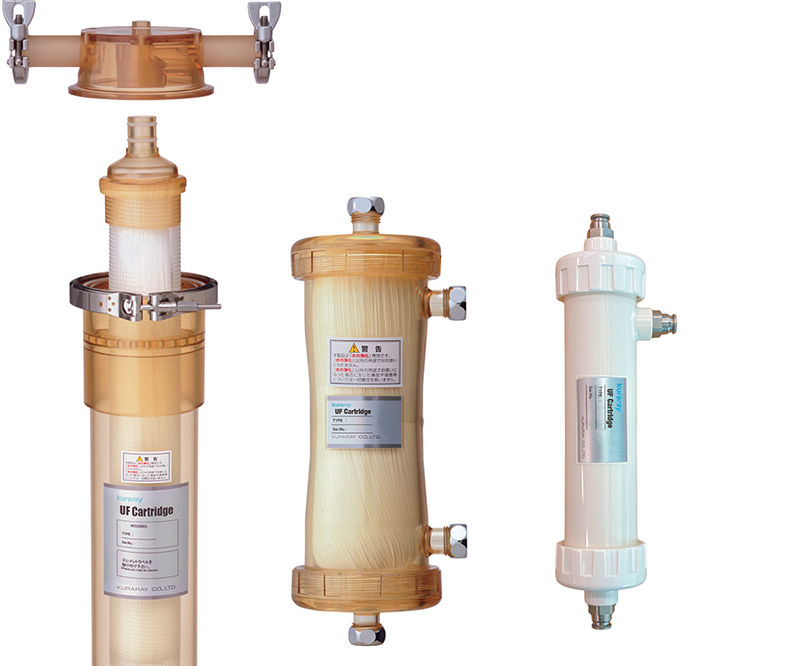

Compact Ultrafiltration Membrane Module: UF Cartridge Series

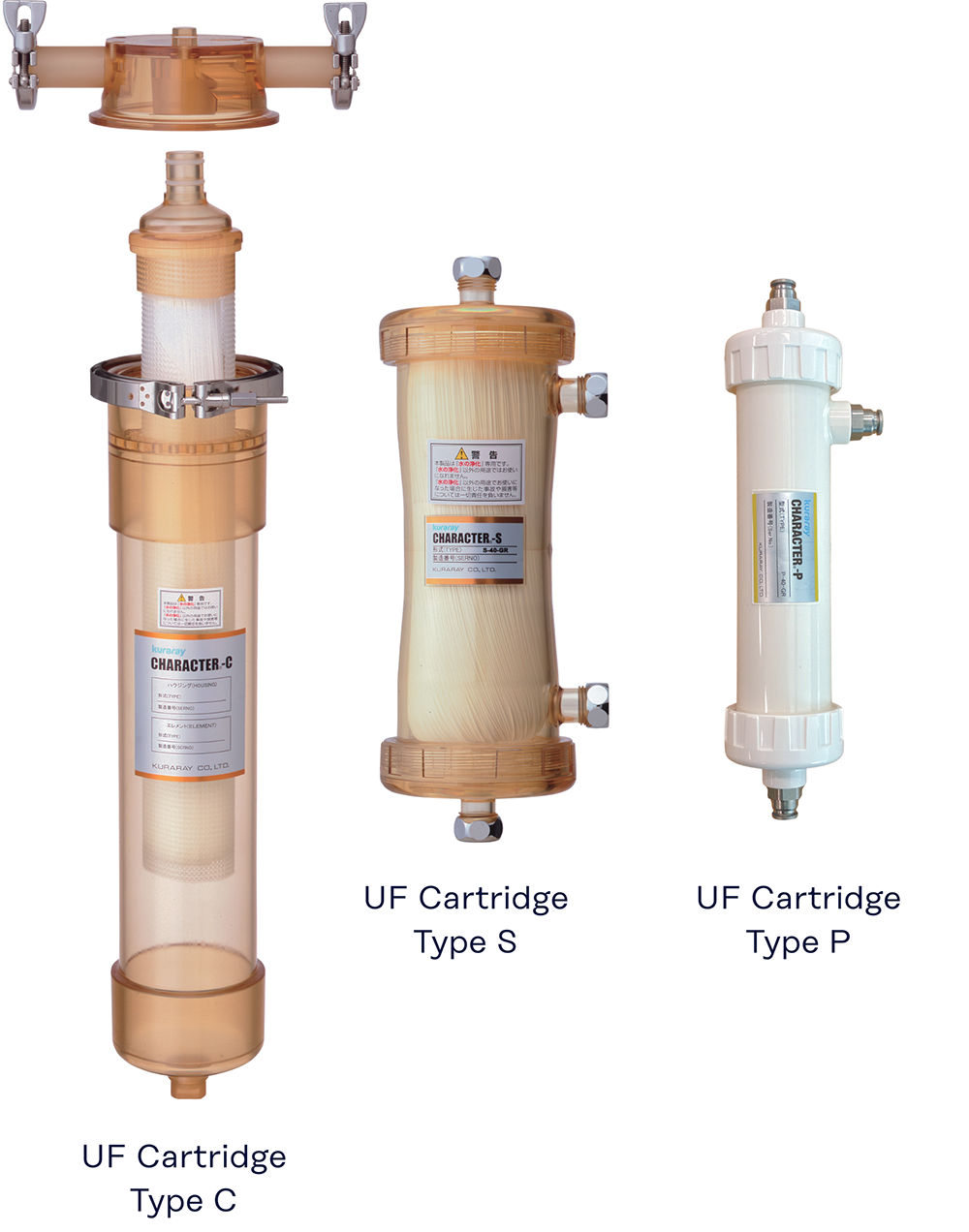

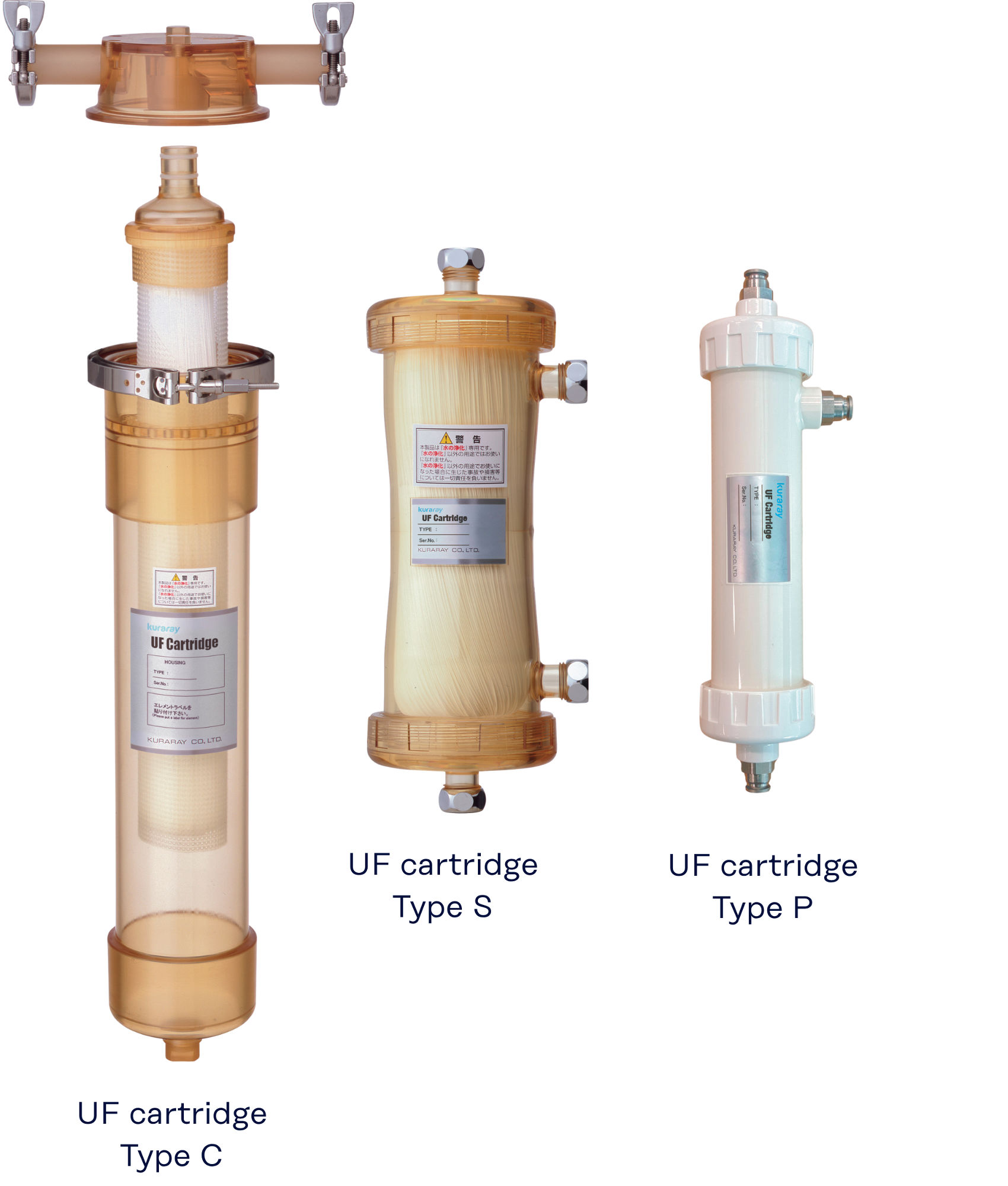

Features of the UF Cartridge Series
High Performance with Ease of Use
- While used in the same way as conventional microfiltration (MF), it delivers the high separation performance of ultrafiltration (UF).
Space-Saving Inline Installation
- It can be installed directly on existing pipeline, so no special equipment or space is required.
Compatible with Hot Water Sterilization
- It has heat resistance and can be sterilized with hot water at 95°C for 30 minutes.
Effective Bacteria and Endotoxin Removal
- Testing in accordance with Japanese Industrial Standards (JIS) has confirmed effective capture and removal of bacteria and endotoxins.
Cartridge System (C Series)
- The cartridge system allows replacement of elements. Excellent disposability and low running costs.
Application-Specific Variations (C Series, S Series)
- Two types of hollow fiber membranes with different fractionation performance are available. Please consult us separately when using this product.
Small size reduces the risk of bacterial growth (P Series)
- The filter size has been downsized to accommodate processing volumes as small as several dozen liters per hour. Dead space is eliminated and the risk of bacterial growth due to retention is reduced.
Specifications of the UF Cartridge Series
UF Cartridge Type C
| Element Type | C-40-HR, C-02-HR |
|---|---|
| Filtration Method | Outside-in, dead-end filtration |
| Nominal Pore Size | MW 13,000, MW 5,000 |
| Effective Membrane Surface Area | 4㎡ |
| Dimension (Diameter × Height) | φ114 × 650 / φ101.6 × 650 |
| Main Material | Polysulfone, epoxy resin |
/
UF Cartridge Type S
| Element Type | S-40-GR, S-02-GR |
|---|---|
| Filtration Method | Outside-in, dead-end filtration |
| Nominal Pore Size | MW 13,000, MW 5,000 |
| Effective Membrane Surface Area | 2㎡ |
| Dimension (Diameter × Height) | φ102 x 290 |
| Main Material | Polysulfone, epoxy resin |
/
UF Cartridge Type P
| Element Type | P-40-GR |
|---|---|
| Filtration Method | Outside-in, dead-end filtration |
| Nominal Pore Size | MW13,000 |
| Effective Membrane Surface Area | 0.4㎡ |
| Dimension (Diameter × Height) | φ48 x 269 |
| Main Material | Polysulfone, epoxy resin |
/

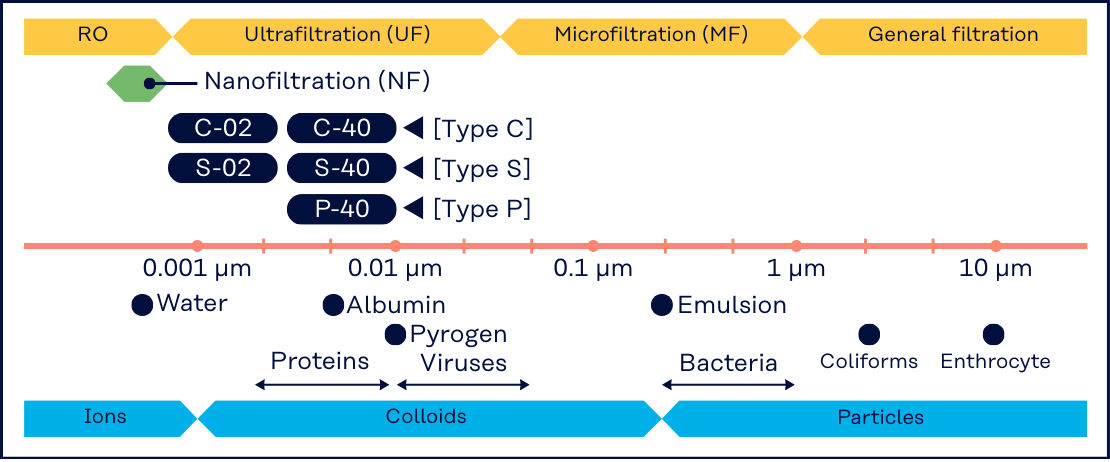

Filtration Range of the UF Cartridge Series
