Outside-in Hollow Fiber Membrane Module: SL Module
Features of the SL Module
Hydrophilic PVDF Membrane
- By applying hydrophilic treatment (PVA coating) to polyvinylidene fluoride (PVDF), which offers excellent chemical resistance and strength, the membrane is resistant to fouling.

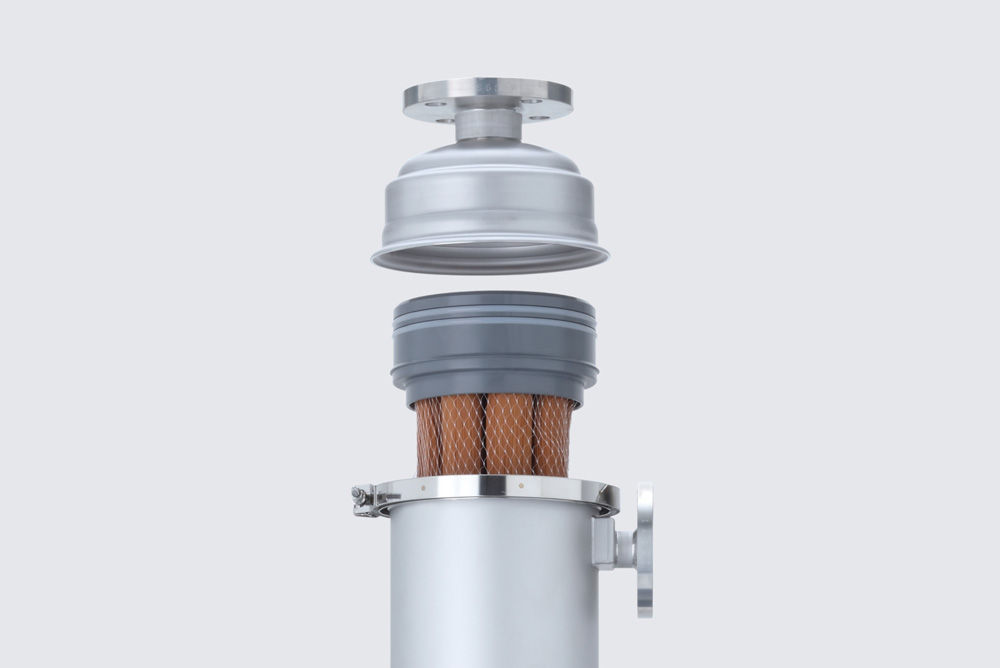

Proprietary Design and Cleaning Method
- The membranes are arranged in a split configuration with spacing between each hollow fiber, enhancing the discharge of suspended matter during cleaning.
Compact and Cost-Effective
- At approximately 1 meter in length, it can be handled by one person. The cartridge system also allows you to replace only the element (inner component), which is compatible with the GS module. This helps reduce running costs accordingly.
Specifications of the SL Module
| Module Type | SL-5101U-S4 (M02-100), SL-5101H-S4 (M02-100) |
|---|---|
| Filtration Method | Outside-in, dead-end filtration |
| Nominal Pore Size | 0.02μm |
| Effective Membrane Surface Area | 28㎡ |
| Dimension (Diameter × Height: mm) | φ189 × 1,160 |
| Main Material | Hydrophilic PVDF, Polyurethane, PVC, SUS |
/

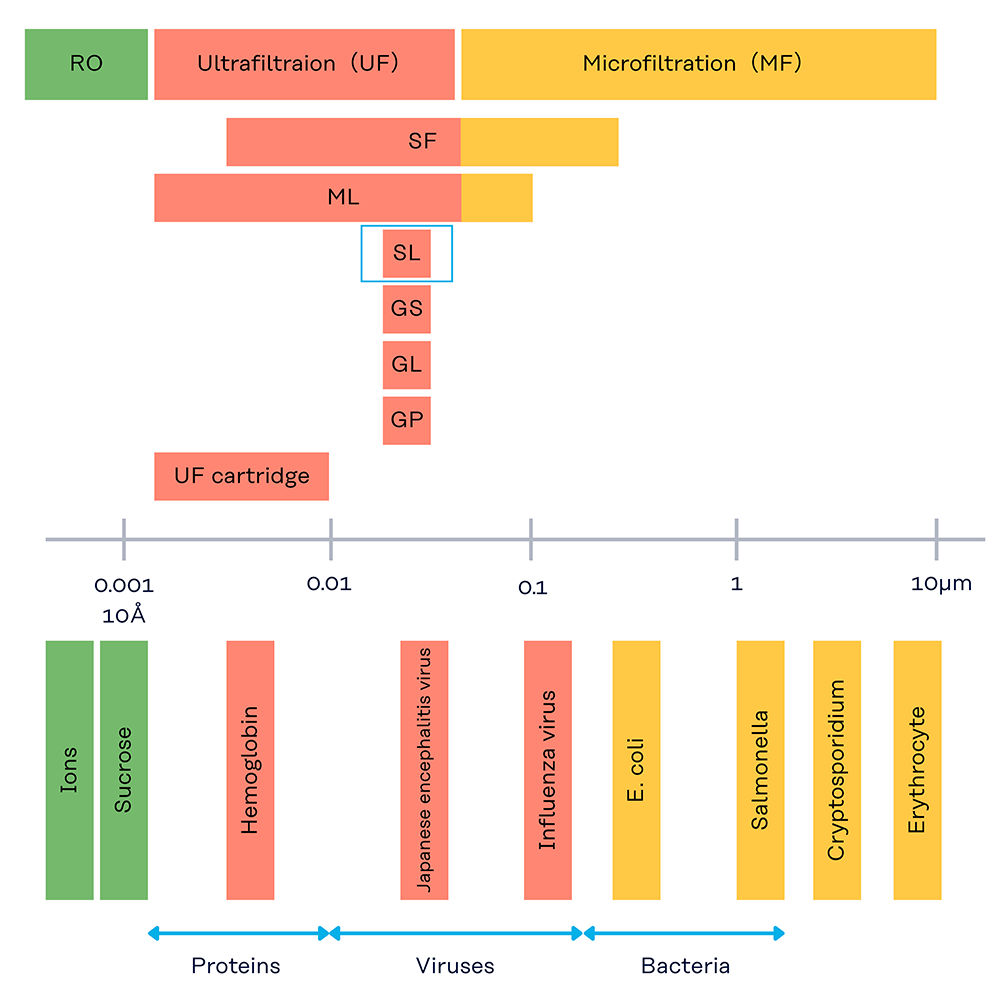

Filtration Range of the SL Module
