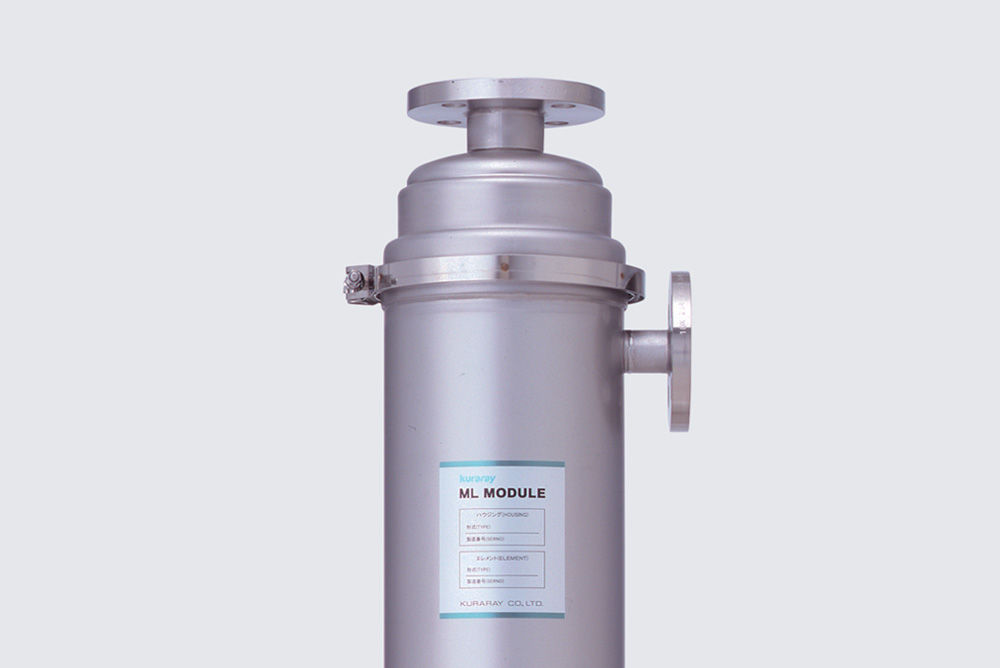

Inside-out Hollow Fiber Membrane Module: ML Module
Features of the ML Module
Separation Characteristics
- With a lineup ranging from ultrafiltration (UF) to microfiltration (MF) membranes, you can select the right hollow fiber membrane for your application, from endotoxin and bacteria removal to wastewater recovery.
High-Temperature Filtration
- Heat-resistant specifications are lined up. Filtration at 90°C is also possible.
Cost-Effective
- The ML module uses a cartridge system, allowing you to replace only the element. This reduces running costs.
Advantages of Membrane Filtration Methods in Food and Pharmaceutical Purification Applications
Alternative to Heat Treatment
- Heating food may change its flavor. Membrane filtration is widely used as a method for bacteria removal and clarification that requires no heat treatment.
Diatomite Filtration Alternative
- Compared to diatomite filtration, membrane filtration offers the following advantages: (1) less waste such as filter media, (2) no need to manage precoating or filter bed conditions, reducing labor, (3) higher filtration precision for reliable removal of unwanted substances, and (4) reduced backwash drain volume.
Purification of Pharmaceuticals and Other Products
- It is used for separation, concentration, and reuse of bacteria in the manufacturing process of proteins and other products using genetically modified yeast and bacteria.
Specifications of the ML Module
Basic specifications (room temperature specifications)
| Element Type | MLE-7101 (0602), MLE-7101 (1210), MLE-7101 (1213) |
|---|---|
| Filtration Method | Inside-out, cross-flow filtration |
| Nominal Pore Size | 0.02μm, 0.1μm, MW 13,000 |
| Effective Membrane Surface Area | 20㎡ or 10㎡ |
| Dimension (Diameter × Height) | φ189 x 1,160 |
| Main Material | PSF, epoxy resin, PVC, SUS |
/
Basic specifications (heat-resistant specifications)
| Element Type | MLE-7101H (1210), MLE-7101H (1213), MLE-7101H (1205) |
|---|---|
| Filtration Method | Inside-out, cross-flow filtration |
| Nominal Pore Size | 0.1μm, MW 13,000, MW 5,000 |
| Effective Membrane Surface Area | 10㎡ |
| Dimension (Diameter × Height) | φ189 x 1,160 |
| Main Material | PSF, epoxy resin, heat-resistant PVC (HT-PVC) , SUS |
/

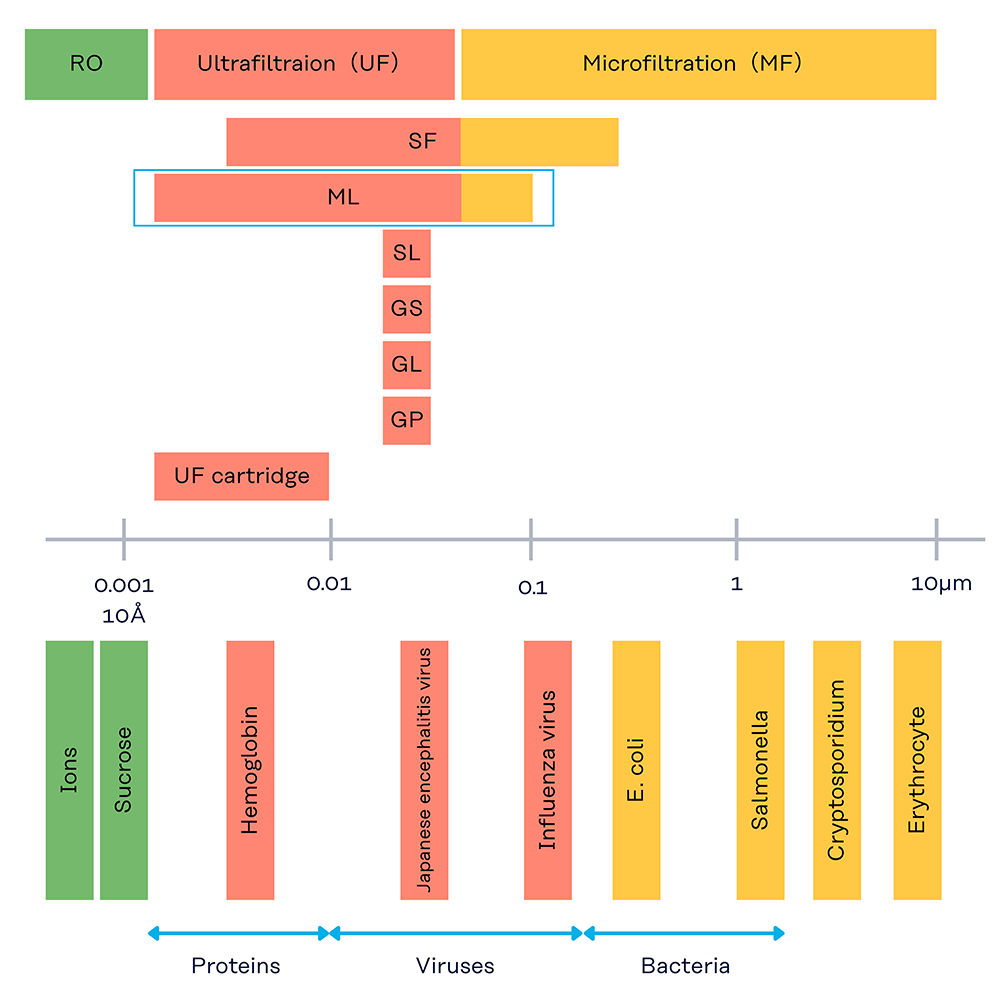

Filtration Range of the ML Module
