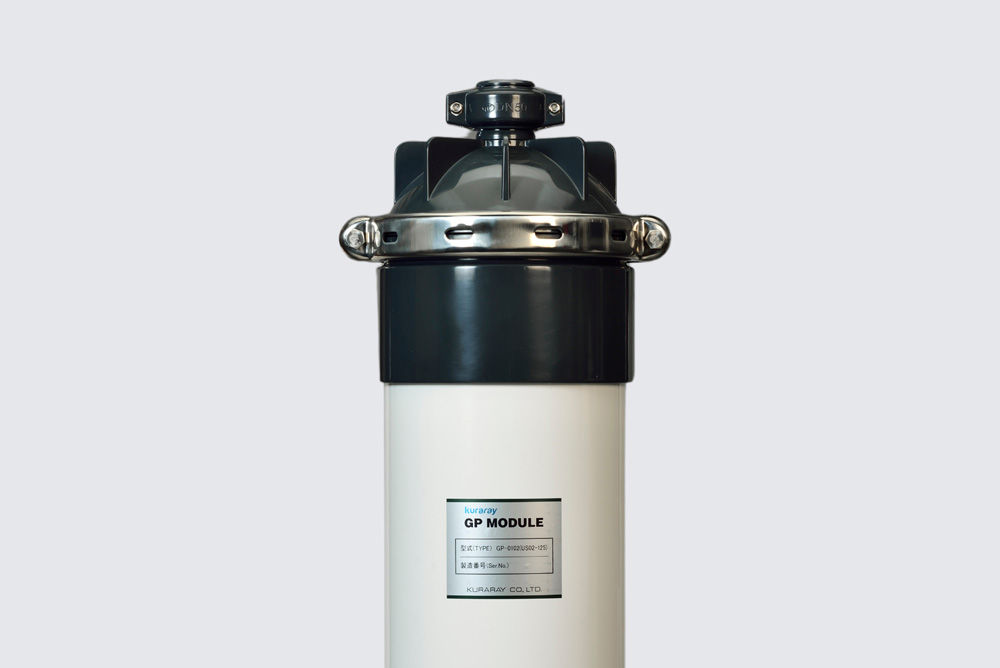

Outside-in Hollow Fiber Membrane Module: AQUAVICSUS™ GP
Features of AQUAVICSUS™ GP
High Permeability
- Proprietary membrane manufacturing technology enables three times higher water permeability than our conventional products.
- High flow rate operation is possible at low filtration pressure.
High Strength and Chemical Resistance
- Proprietary hydrophilic PVDF membrane is used. Excellent strength characteristics and chemical resistance allow for long-term use.
- The resin housing can be used for seawater and raw water with high salt concentration.
High Turbidity Resistance
- The one ended free structure, in which the lower part of the element is not fixed, prevents particles from depositing between the hollow fibers.
- By combining bubbling from the bottom with bubbling from the center distributor inside the element, the entire module can be cleaned efficiently.
High Water Recovery Rate
- The backwash method [air backwash method] using compressed air reduces the amount of backwash water and enables operation with a high recovery rate.
Typical operating conditions: Recovery rate 98.7% (at a filtration flow rate of 5 ㎥ / h and backwash interval of 30 minutes) - No backwash pump and filtered water tank for backwash are required, which saves space in the facility.
MOVIE Product Features in Video
Demonstration of Air Backwashing
Features of AQUAVICSUS™ GP
Specifications of AQUAVICSUS™ GP
| Module type | GP-0102 (US02-125) |
|---|---|
| Filtration Method | Outside-in, dead-end filtration |
| Nominal Pore Size | 0.02μm |
| Effective Membrane Surface Area | 50m² |
| Dimension (Diameter × Height) | φ250 × 1,345 |
| Main Material | PVDF, Polyurethane, PVC |
/

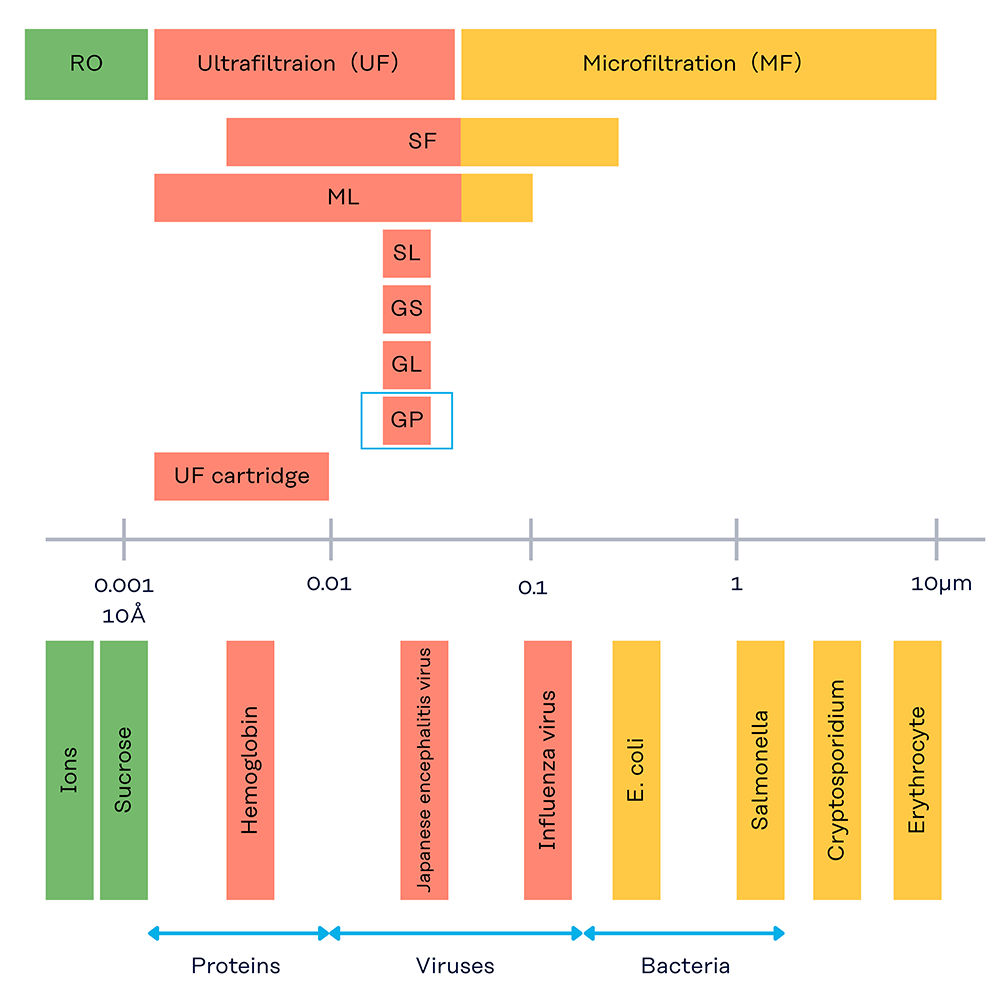

Filtration Range of AQUAVICSUS™ GP
