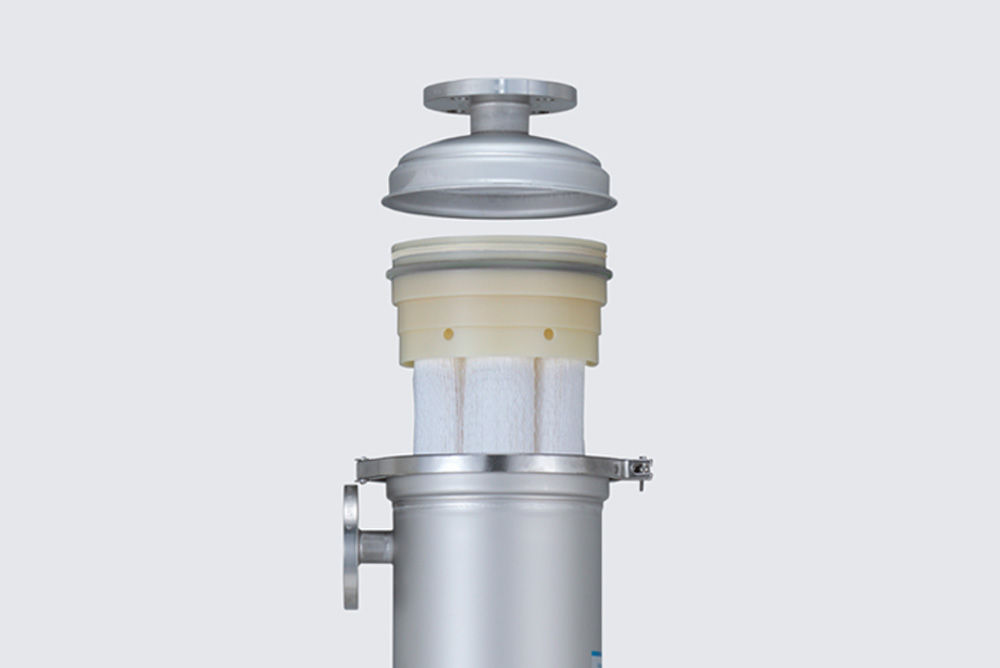

Outside-in Hollow Fiber Membrane Module: AQUAVICSUS™ GL
Features of AQUAVICSUS™ GL
High Permeability
- Proprietary membrane manufacturing technology enables 3 times higher water permeability than our conventional products.
- High flow rate operation is possible at low filtration pressure.
High Turbidity Resistance
- The one ended free structure, in which the lower part of the element is not fixed, prevents particles from depositing between the hollow fibers.
- By combining bubbling from the bottom with bubbling from the center distributor inside the element, the entire module can be cleaned efficiently.
High Water Recovery Rate
- The backwash method [air backwash method] using compressed air reduces the amount of backwash water and enables operation with a high recovery rate.
Typical operating conditions: Recovery rate 98.5% (at a filtration flow rate of 4 m3/h and backwash interval of 30 minutes) - No backwash pump and filtered water tank for backwash are required, which saves space in the facility.
Compact and Cost-Effective
- The housing height is as low as approximately 1.4 m, allowing for compact equipment design.
- No pump or tank for backwashing is required, contributing to lower equipment costs and space saving.
MOVIE Product Features in Video
Demonstration of Air Backwashing
Features of AQUAVICSUS™ GL
Specifications of AQUAVICSUS™ GL
| Module type | GL-0101-S4 (US02-125), GL-0101-S6L (US02-125) |
|---|---|
| Filtration Method | Outside-in, dead-end filtration |
| Nominal Pore Size | 0.02μm |
| Effective Membrane Surface Area | 40m² |
| Dimension (Diameter × Height) | φ207 x 1,421 |
| Main Material | PVDF, Polyurethane, ABS, SUS |
/

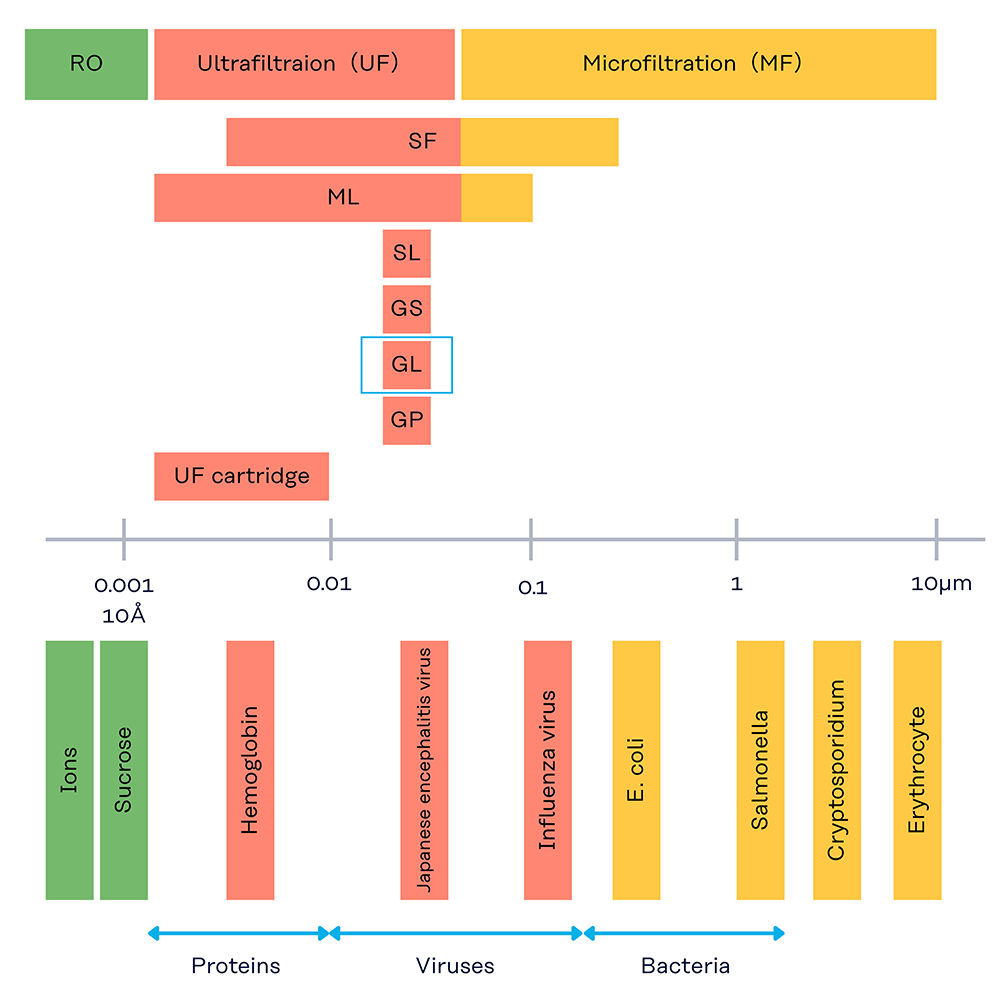

Filtration Range of AQUAVICSUS™ GL
